LEDtech-GROW



LED TECHNOLOGY BASED ON BISMUTH-SENSITIZED Eu3+ LUMINESCENCE FOR COST-EFFECTIVE INDOOR PLANT GROWTH



Истраживање спроведено уз подршку Фонда за науку Републике Србије, Број пројекта 10412, ЛЕД ТЕХНОЛОГИЈА ЗАСНОВАНА НА Еu3+ ЛУМИНЕСЦЕНЦИЈИ СЕНЗИТОВАНОЈ БИЗМУТОМ ЗА ИСПЛАТИВ РАСТ БИЉАКА У ЗАТВОРЕНОМ ПРОСТОРУ



This research was supported by the Science Fund of the Republic of Serbia, 10412 Grant No, LED TECHNOLOGY BASED ON BISMUTH-SENSITIZED Eu3+ LUMINESCENCE FOR COST-EFFECTIVE INDOOR PLANT GROWTH

PROJECT

In light of global urbanization, the key to long-term agricultural development is a more efficient use of arable land, labor, and modern technology. Indoor plant factories are promising solutions for future horticulture production and food supply to densely populated urban areas. The light-emitting-diode (LED) is revolutionizing general illumination with the promise of enormous energy savings when widespread adoption occurs. However, current LED technologies for plant cultivation are less developed compared to LEDs for general lighting. LEDtech-GROW offers innovation in the field of LEDs that entirely satisfy the needs of plants and cannot be achieved with any LED technology currently available. To maximize such benefits, we will address a few critical issues: light quality, long-term stability, and the environmental impacts of the chosen solutions. We will develop inorganic phosphors that convert as much electrical energy as possible into a Photosynthetically Active Radiation (PAR) spectrum of plant photoreceptors, which differs from one required for general lighting. This groundbreaking technology will deliver double and triple-wavelength emitting phosphors that increase light output for cryptochrome and phytochrome photoreceptors while ensuring high color quality. The fundamental concept of inner-particle energy transfer between Bi3+ and Eu3+ ions significantly contributes to the development of plant-grow-targeted LEDs. Therefore, we will design and fabricate highly efficient, environment-friendly, and moisture-resistant plant-grow-targeted LEDs based on bismuth-sensitized Eu3+-activated single-component phosphors for the whole PAR spectrum.

Overall objective

Our mission is to develop sustainable and environment-friendly LED technology for cost-effective indoor plant growth. Requirements for plant-grow-targeted LEDs differ from those for general lighting since their emission should provide an efficient electric energy conversion to the PAR spectrum of plant photoreceptors rather than match the spectral sensitivity of the eye. Also, moisture-resistant plant-grow-targeted LEDs are urgently needed due to the high-humidity environment in which they operate. These plant-grow-targeted LEDs will offer several benefits, including increased yields, earlier flowering, faster root growth/germination, better control of plant growth, and more economical use of arable land. Therefore, the science-to-technology innovation is new LED technology that entirely satisfies the needs of plants and cannot be achieved with any LED technology currently available.

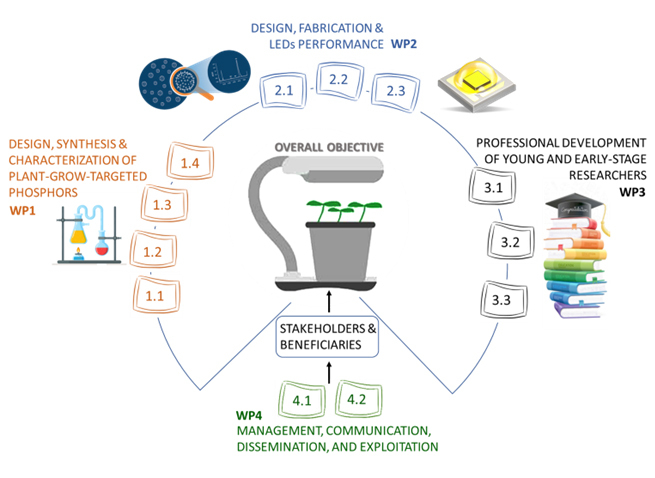

WORK PACKAGES

Design, synthesis, and characterization of plant-grow-targeted phosphors

Synthesis and characterization of highly efficient and moisture-resistant plant-grow-targeted phosphors based on double- and triple-wavelength emission in single-component host matrices for the whole PAR spectrum (providing feedback to WP2).



- Synthesis and design of traditional Eu3+- and Bi3+/Eu3+-activated inorganic fluoride phosphors;

- Synthesis and design of a novel generation of Eu3+- and Bi3+/Eu3+-activated inorganic fluoride phosphors;

- Structural, morphological, and optical analysis of phosphors;

- Temperature-dependent photoluminescence, quantum efficiency, and chemical stability of phosphor.

Design, fabrication, and LEDs performance



Synthesis and characterization of highly efficient and moisture-resistant plant-grow-targeted phosphors based on double- and triple-wavelength emission in single-component host matrices for the whole PAR spectrum (providing feedback to WP2).



- Synthesis and design of traditional Eu3+- and Bi3+/Eu3+-activated inorganic fluoride phosphors;

- Synthesis and design of a novel generation of Eu3+- and Bi3+/Eu3+-activated inorganic fluoride phosphors;

- Structural, morphological, and optical analysis of phosphors;

- Temperature-dependent photoluminescence, quantum efficiency, and chemical stability of phosphor.

Professional development of young and early-stage researchers

Objective: Young and early-stage researchers gain confidence and motivation to apply for EU programs and funding, as well as expertise and know-how for successful project implementation.

Management, communication, dissemination, and exploitation

Objectives: The entails the project’s management and coordination activities, connected to the handling of all the administrative, scientific, technical, financial, and legal aspects of the project.

The framework of the LEDtech-GROW project is based on issues in the field of materials science and the fabrication of novel generation of plant-grow-targeted LEDs, rather than other parameters in the field of cultivation.

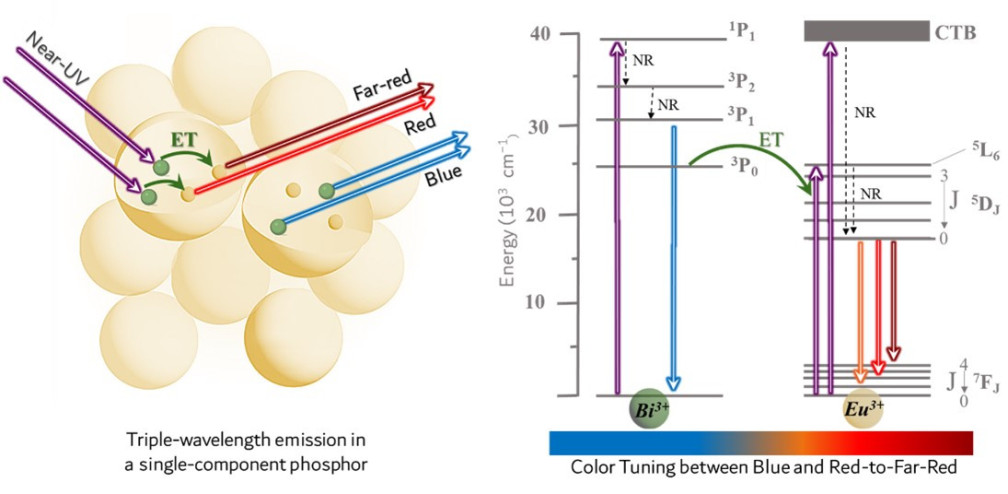

Weak near-UV and blue spectral range absorptions (f-f electron transitions) prevent the use of Eu3+-based phosphors in LED applications. Therefore, we will demonstrate a sensitization mechanism of inner-particle energy transfer between Bi3+ and Eu3+ activator ions to increase the effective excitation at a desired wavelength. Bi3+-based phosphors, which affect blue light-sensitive cryptochromes and phototropin plant photoreceptors are an excellent choice due to the broadband blue emission centered at around 453 nm corresponding to the 3P1→1S0 allowed transition. Due to the interaction of Bi3+ with the host matrices, the position of the excitation and emission bands is highly related to the crystal structure, crystal field environment, and nephelauxetic effect of host matrices. In addition, through an excitation-driven strategy, the emission peak position of Bi3+ may be shifted, therefore the luminescence of trivalent bismuth ions may be adjusted. The large distance between the sites occupied by Eu3+ and Bi3+ in fluoride matrices makes it possible to achieve high-concentration doping of phosphor, resulting in strong emission and QE over 90%.
